The All-in-One
Logistics Automation Hub.
Dimension. Weigh. Scan. Capture. Integrate. All in one station. Transform parcel handling with a compact DWS station that captures the data your operation needs in seconds — and connects it directly with your operational systems.
Parcel Data Shouldn't Slow Down Your Warehouse.
Separate weighing, measurement, scanning, recording and sorting activities — each adding time and manual handoff.
One operational station consolidates capture, guidance and integration — reducing handoffs from five steps to one.
One Scan.
Complete Parcel Intelligence.

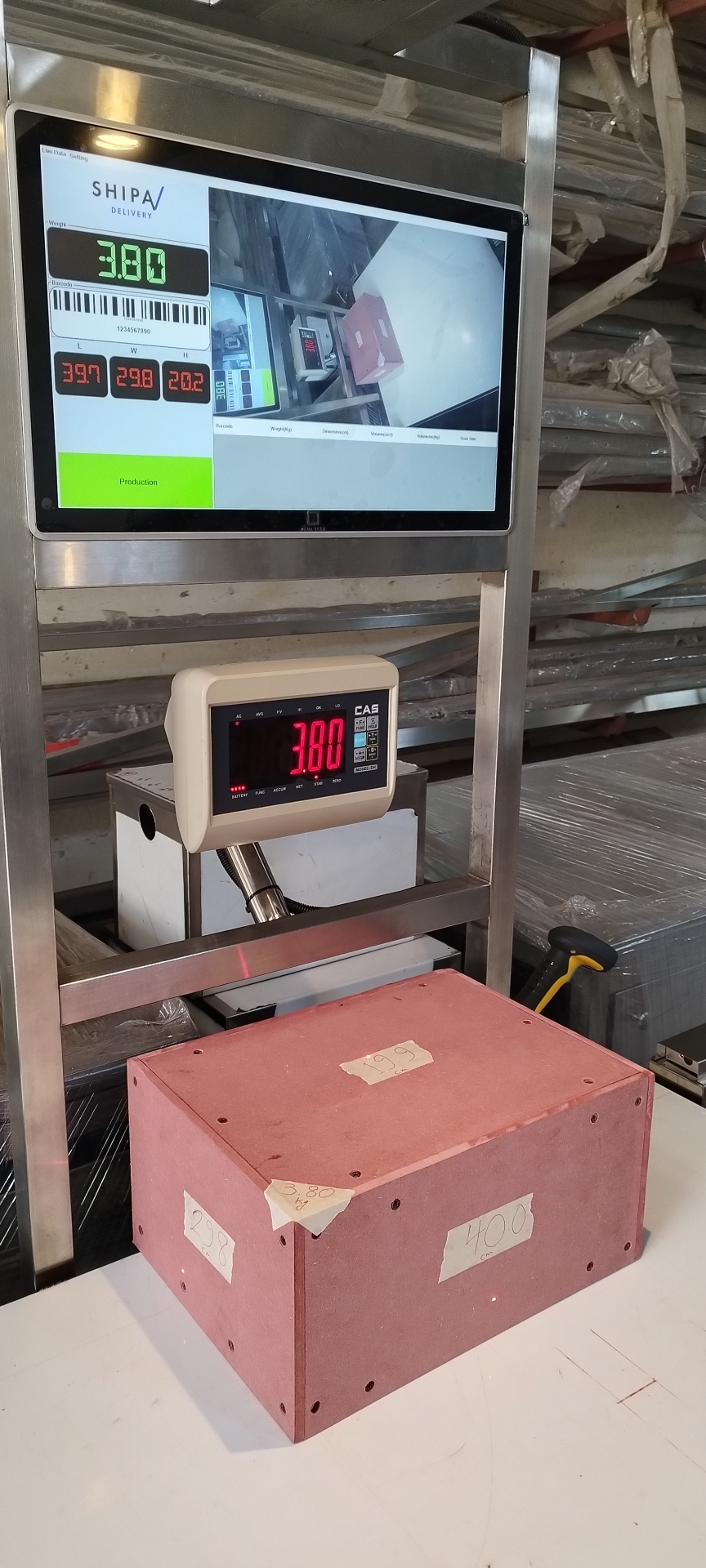

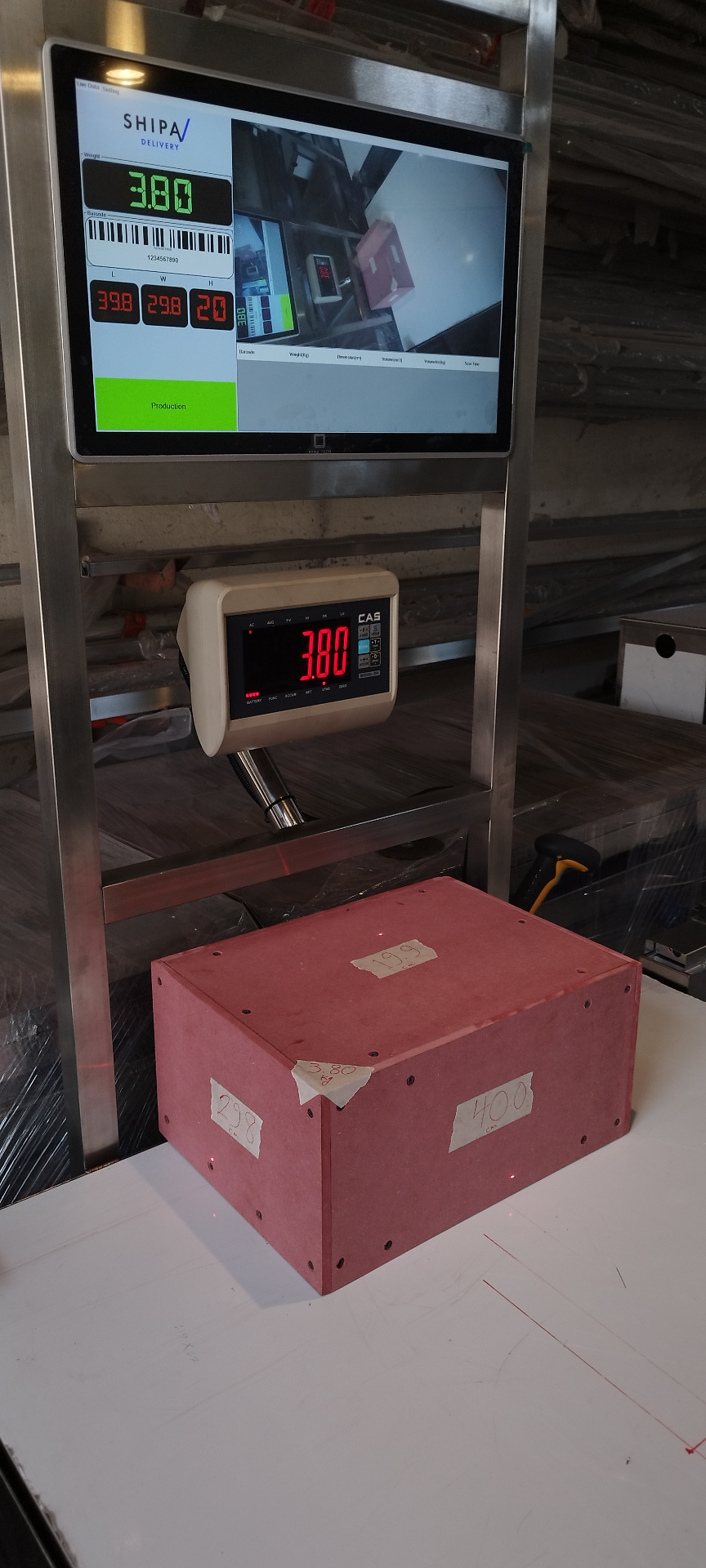

Printed box dimensions match the values shown on the machine screen — verified accuracy in the field.
- 01ScanIdentify the parcel using its barcode.
- 02DimensionCapture Length × Width × Height.
- 03WeighRead parcel weight from the integrated scale.
- 04CaptureStore a proof image with the transaction.
- 05CalculateGenerate volume and volumetric weight.
- 06IntegrateSend or retrieve parcel information through API integration.
- 07GuideDisplay destination or sorting information to the operator.

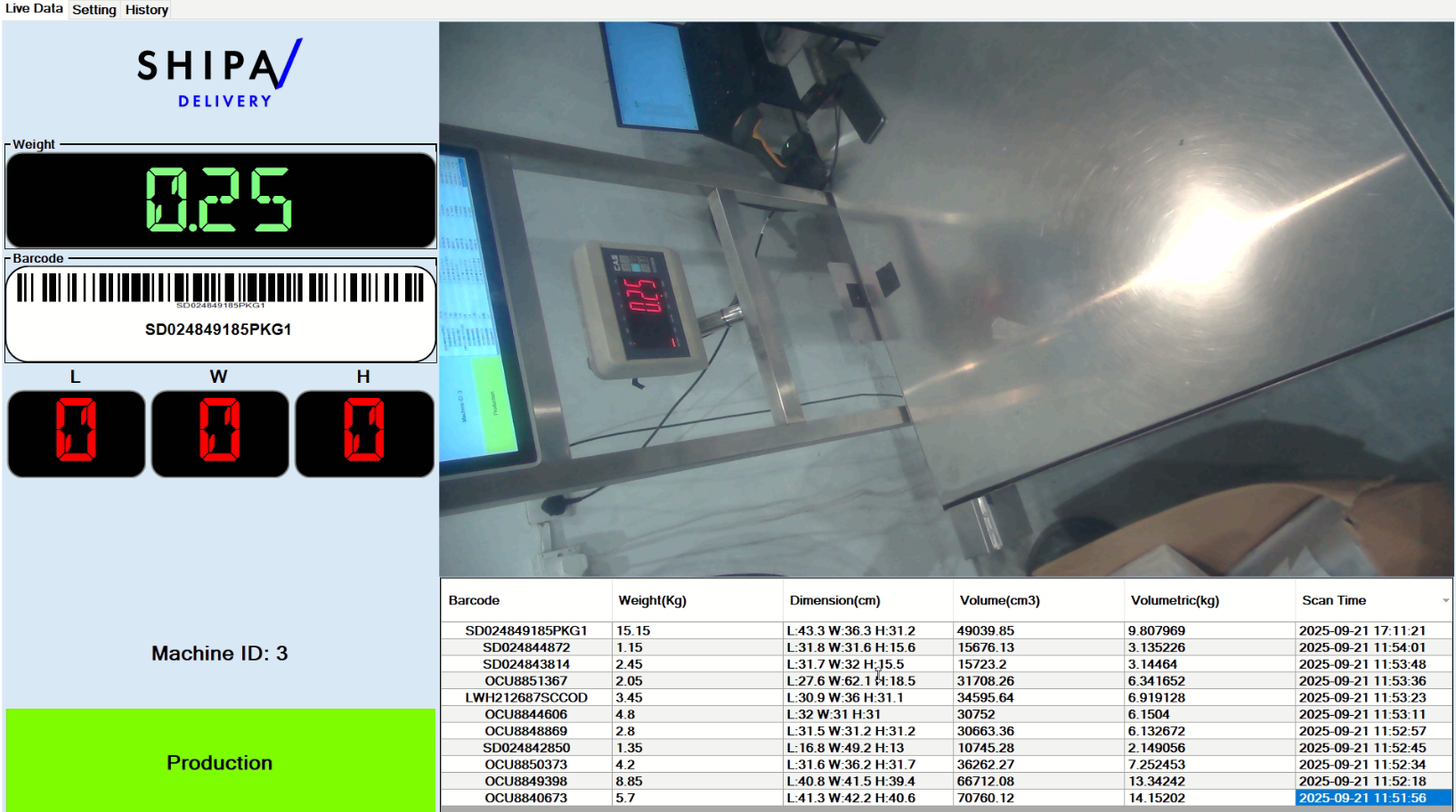

Everything the Operator Needs.
On One Screen.

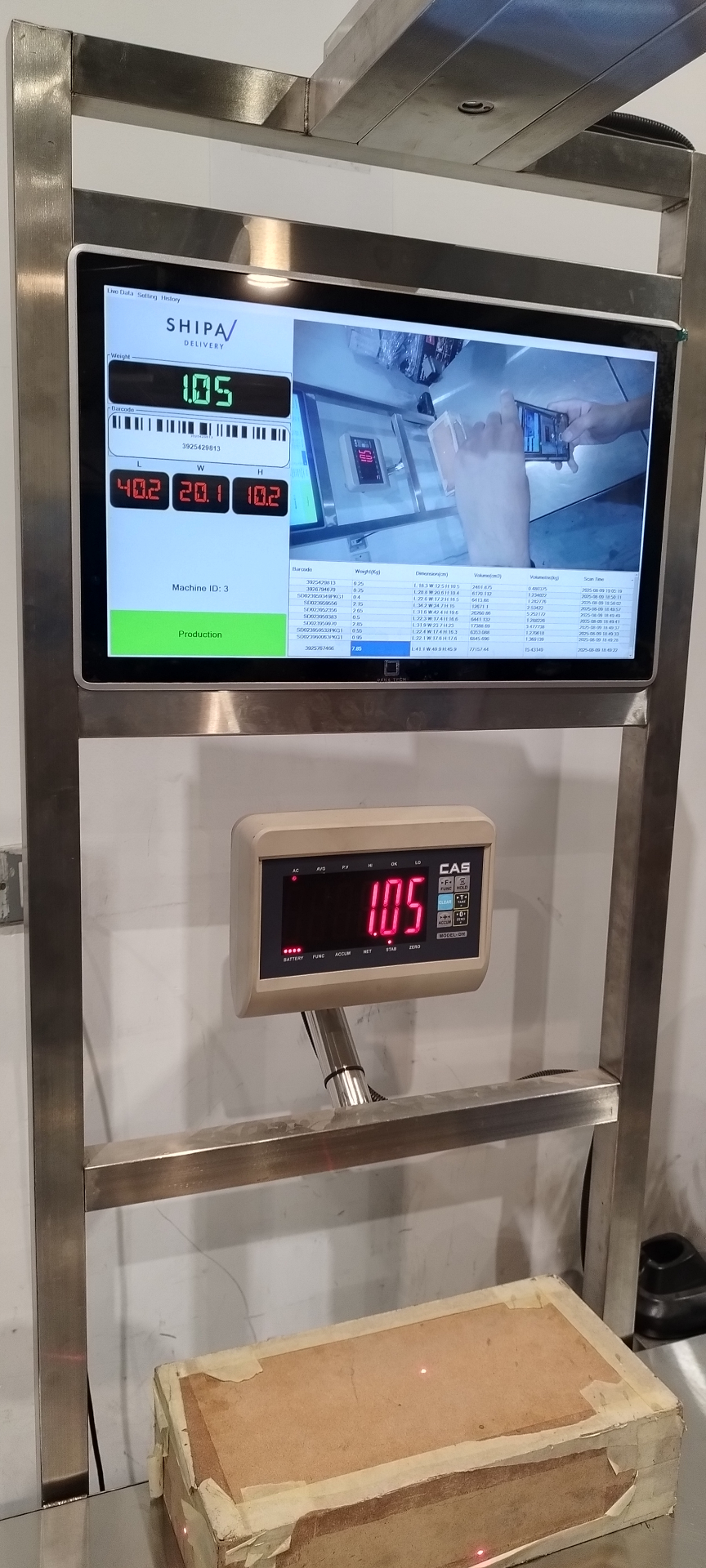

The integrated touchscreen gives operators immediate access to parcel measurements, barcode information, visual confirmation and transaction history.
- Online real-time operation
- Offline operation with synchronization
- Local history
- Wi-Fi / Ethernet configuration
- Data export
Built to Work With
Your Systems.
Hybrid DWS is designed for custom integration with existing warehouse and logistics systems through APIs.
Engineered to the Numbers.
- Dimension Accuracy
- ±1 cm
- Weight Accuracy
- ±50 g
- Maximum Parcel Size
- 100 × 100 × 100 cm
- Barcode Support
- Major 1D & 2D barcodes
- Image Logging
- 1080p proof image + timestamp
- API Integration
- Real-time backend integration
- Machine Footprint
- 1.2 m × 1.2 m × 2 m
- Connectivity
- Wi-Fi / Ethernet
- Setup
- Static or movable on wheels
- Operation
- Online real-time / Offline with sync
- Power Consumption
- < 200 W
- Integration
- Custom integration APIs
- Scan Time (Online)
- < 2 s + API round-trip
- Scan Time (Offline)
- < 2 s
Specifications may vary depending on configuration and customer requirements.
Where Hybrid DWS Fits.

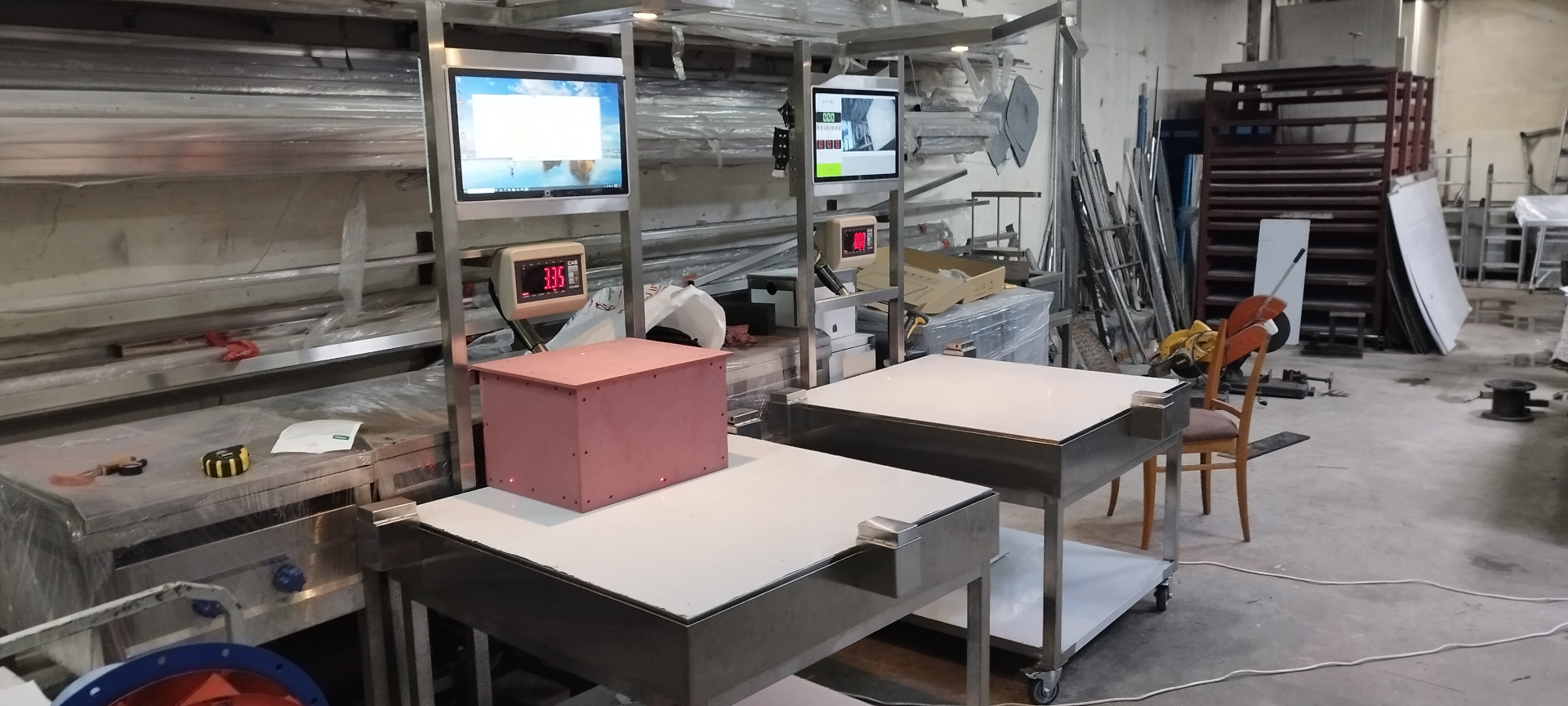

The Machine, in Real Environments.
Looking for a Camera-First Approach?
If your operation already has suitable camera infrastructure or requires a software-first approach, explore VisionFLOW.
Bring Intelligent Parcel Handling
to Your Operation.
Tell us about your warehouse, shipment volume and existing workflow. RENA can help determine the right automation approach.
Talk to RENA.
Tell us about your warehouse, shipment volume and existing workflow. We'll help determine the right automation approach — Hybrid DWS, VisionFLOW, or both.
